mtrack Documentation (v0.11.2)

mtrack is a multitrack audio, MIDI, and lighting player for live performances. It runs on small devices like the Raspberry Pi and is designed to be controlled remotely — from your feet, a phone, or any device with a browser — so you never have to babysit a computer on stage.

Features

• Multitrack audio — Play back multiple audio files simultaneously, mapping channels to any class-compliant audio interface. Supports WAV, FLAC, MP3, OGG, AAC, M4A, and AIFF.
• MIDI playback — Synchronize MIDI file playback with audio for automating on-stage gear.
• DMX lighting — Programmable lighting effects with a custom DSL, real-time effects engine, and OLA integration for DMX output.

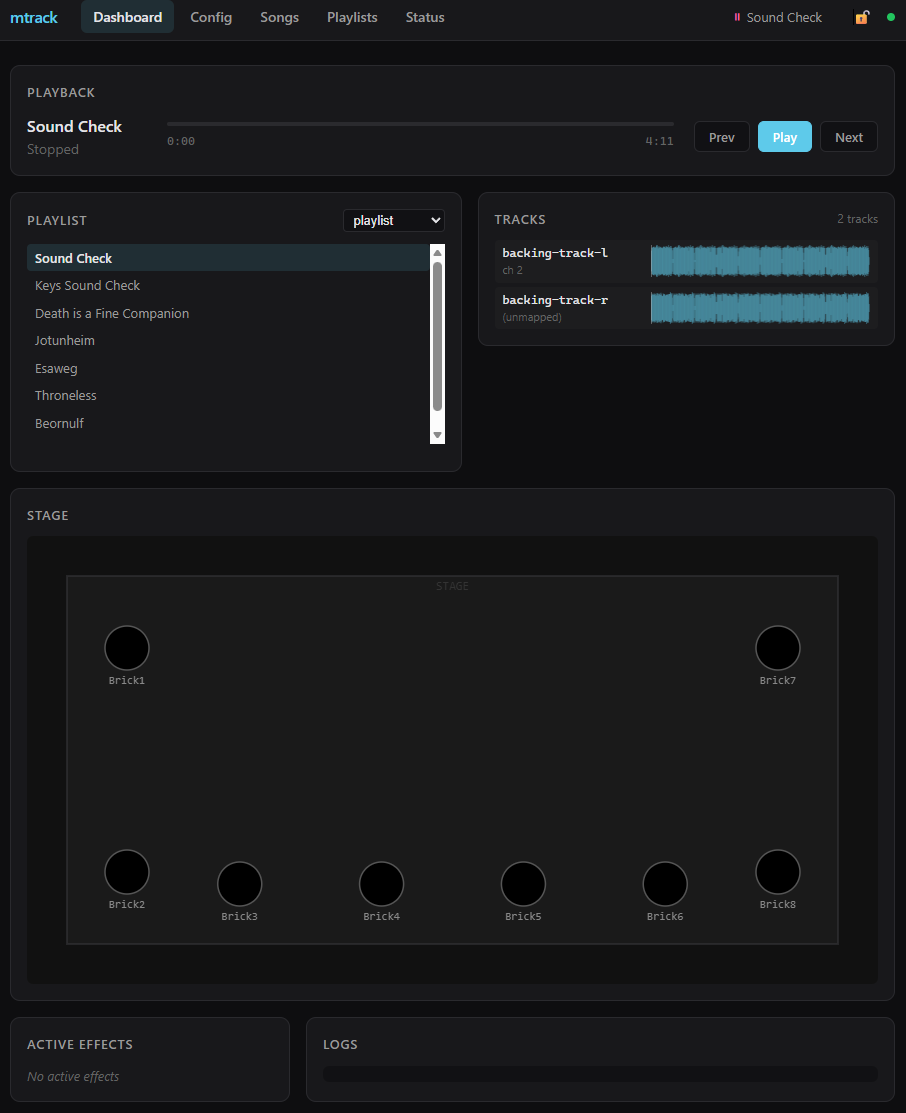

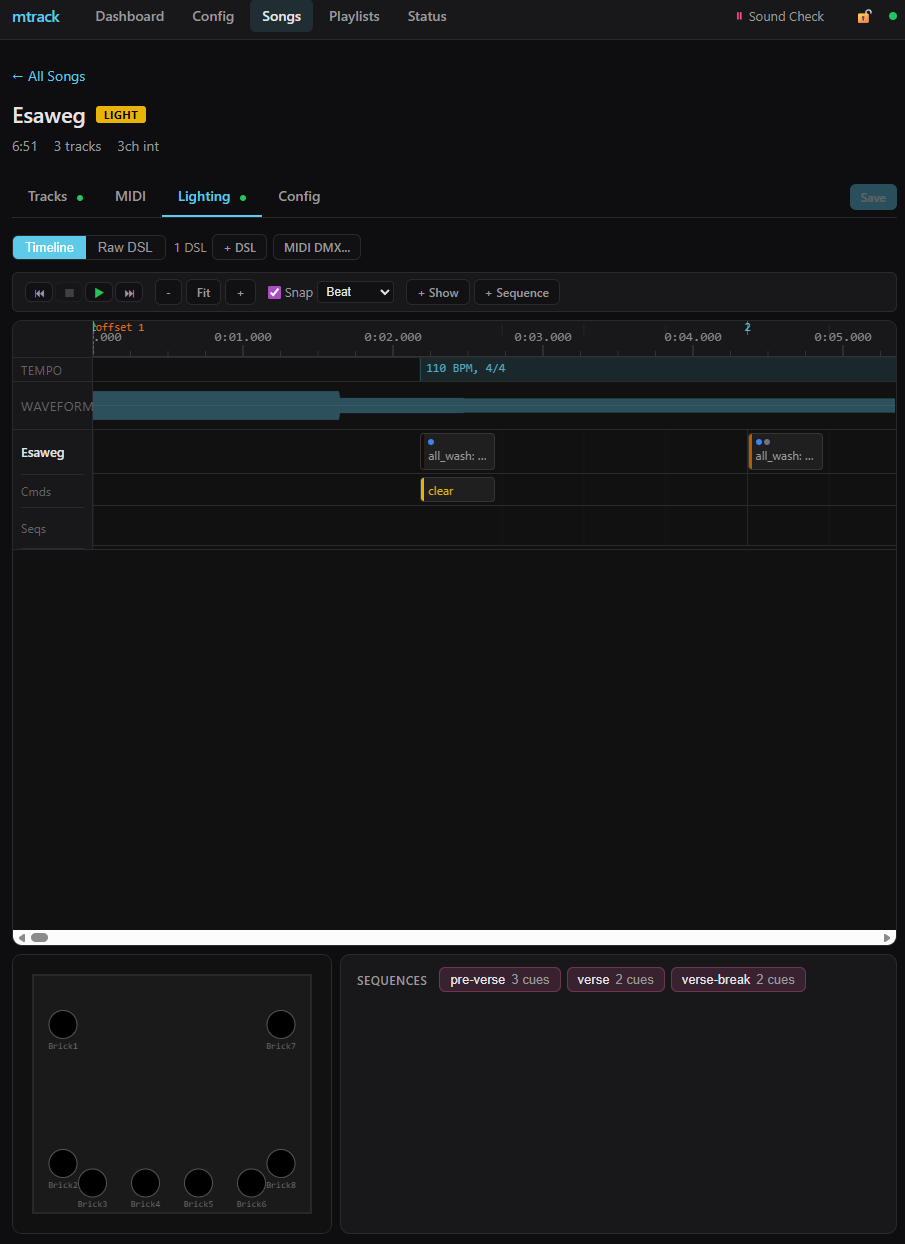

• Web UI — Full browser-based interface for playback control, song management, lighting show editing, playlist management, and hardware configuration. Includes a DAW-style timeline editor with integrated playback preview.
• Zero-config startup — Point mtrack at a directory of songs and it works. No config file required.
• Lock mode — Safety mechanism for live shows. Lock the player to prevent accidental configuration changes while keeping playback controls active.
• Multiple control interfaces — Web UI, gRPC, OSC, and MIDI control. Use foot controllers, tablets, or custom software to drive playback.
• Hardware profiles — Define per-machine hardware configurations that auto-select based on hostname. Carry the same config across rehearsal and show rigs.
• Triggered samples — Audio and MIDI-triggered sample playback with velocity curves, release groups, and voice management.

Quick Start

# Install
cargo install mtrack

# Start with a directory of songs
cd /path/to/my/songs
mtrack start

# Or point at a specific directory
mtrack start /path/to/my/songs

Open http://localhost:8080 in a browser to access the web UI. From there you can import songs, configure hardware, build playlists, and control playback — no config files needed.

See the Quick Start guide for a walkthrough.

How It Works

1. mtrack starts on the first song in the active playlist, selected but not playing.
2. Navigate songs using next/previous controls (web UI, MIDI, OSC, or gRPC).
3. Play the selected song. Audio, MIDI, and lighting play back in sync.
4. Stop at any time. When a song finishes naturally, the playlist advances to the next song.
5. Switch playlists to access different setlists, or use the all-songs list to find any song.

Why YAML?

While the web UI is the easiest way to manage mtrack, everything it does is stored as plain YAML files on disk. This is a deliberate design choice:

• Readable — Configuration, songs, and playlists are human-readable text. You can understand your entire setup by reading the files, with no opaque binary formats or databases to decode.
• Recoverable — If something goes wrong, you can fix it with a text editor. No special tools or export procedures needed.
• Resilient — Plain files on a filesystem are hard to corrupt. There’s no database to rebuild, no migration to run, no lock file to clear. If mtrack crashes mid-write, the worst case is one partially written file.
• Storable — Your entire mtrack project — songs, playlists, configuration, lighting shows — can be checked into Git or any version control system. Track changes over time, branch for experiments, and roll back mistakes.

The web UI reads and writes these same files. You can freely switch between the UI and hand-editing YAML — they’re always in sync.

Documentation

Getting started:

• Installation
• Quick Start
• Importing Songs
• Playlists
• Hardware Configuration

Interfaces and reference:

• Web UI
• Lighting
• Hardware Profiles
• Player Configuration (YAML)
• Song Configuration (YAML)
• gRPC Control
• OSC Control
